	Computer-aided PD Measuring System LDS-5
	click to enlarge	Downloads | Specifications | Program Sections | Display Samples

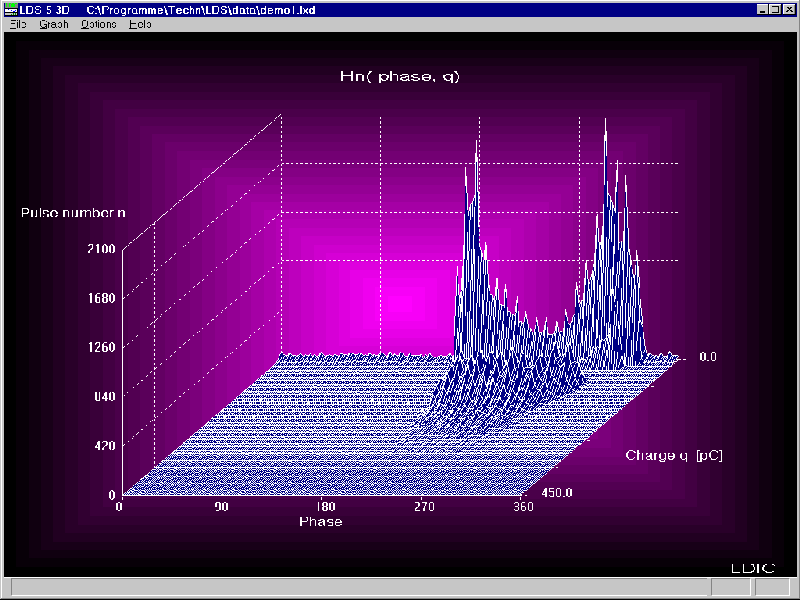

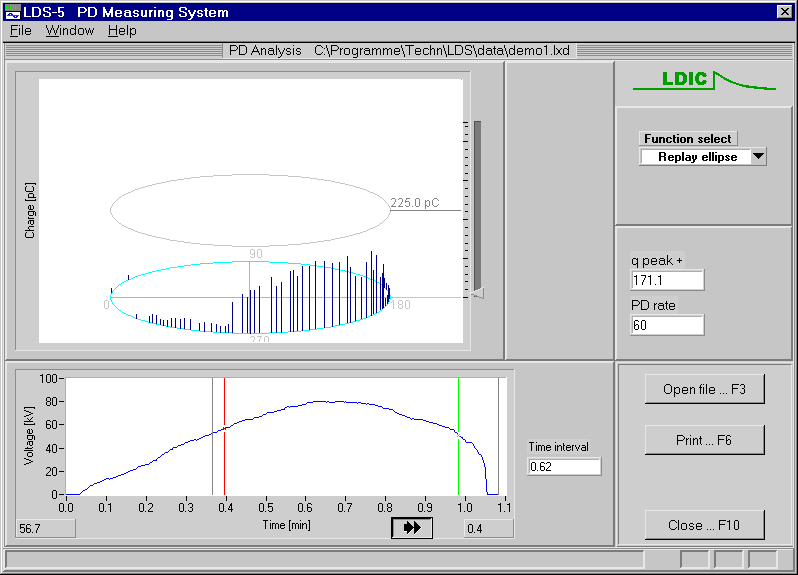

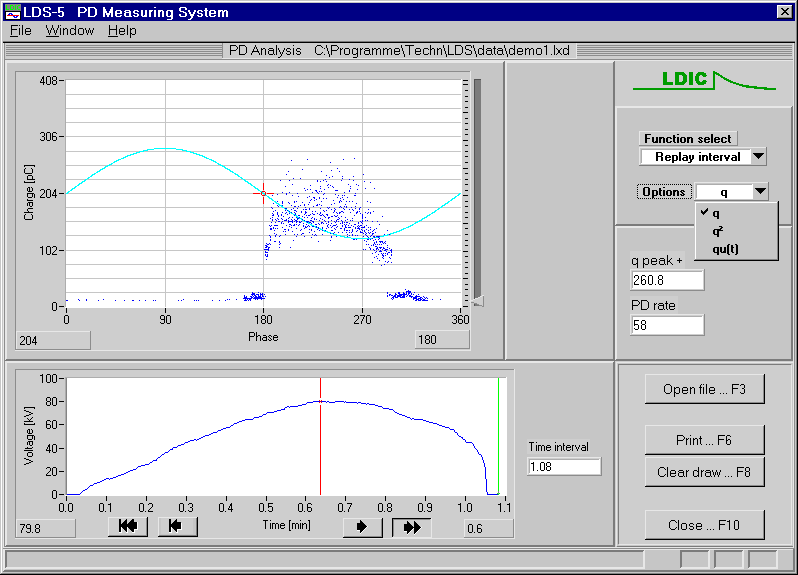

		The complete partial discharge (PD) measuring system LDS-5 consists of the PD measuring hardware (LDD-5/C or LDP-5), the computer (IBM compatible) equipped with the analog/digital converter card, the Matching Unit for adaption of the input signals, as well as the required software for data acquisition and controlling the hardware.   Applications: Monitoring, Recording and Analysis of PD Pulses Downloads: Accessories: LDS-5 Brochure LDS-5 Technical Paper LDS-5 Demo Software LDS-5 Display Samples LDS-5 RFQ LDS-5 Slide Show Get Adobe Acrobat Reader!       Specifications: To be specified Return to top   The program LDS-5 consists of different sections: Setup Base settings of the measuring system Calibration PD calibration and observation of the measuring signal (Oszilloscope mode) Measurement Measurement and online data storage (point display of maximum value of the PD pulses) Analysis Replay and evaluation of the measured data in 2D and 3D mode Return to top PD Display Samples : 2D-representation of PD events (40 kB) 2D- xy-diagram (40 kB) 2D-phase resolved PD pattern (40 kB) 3D-phase resolved PD pattern (40 kB) Return to top
