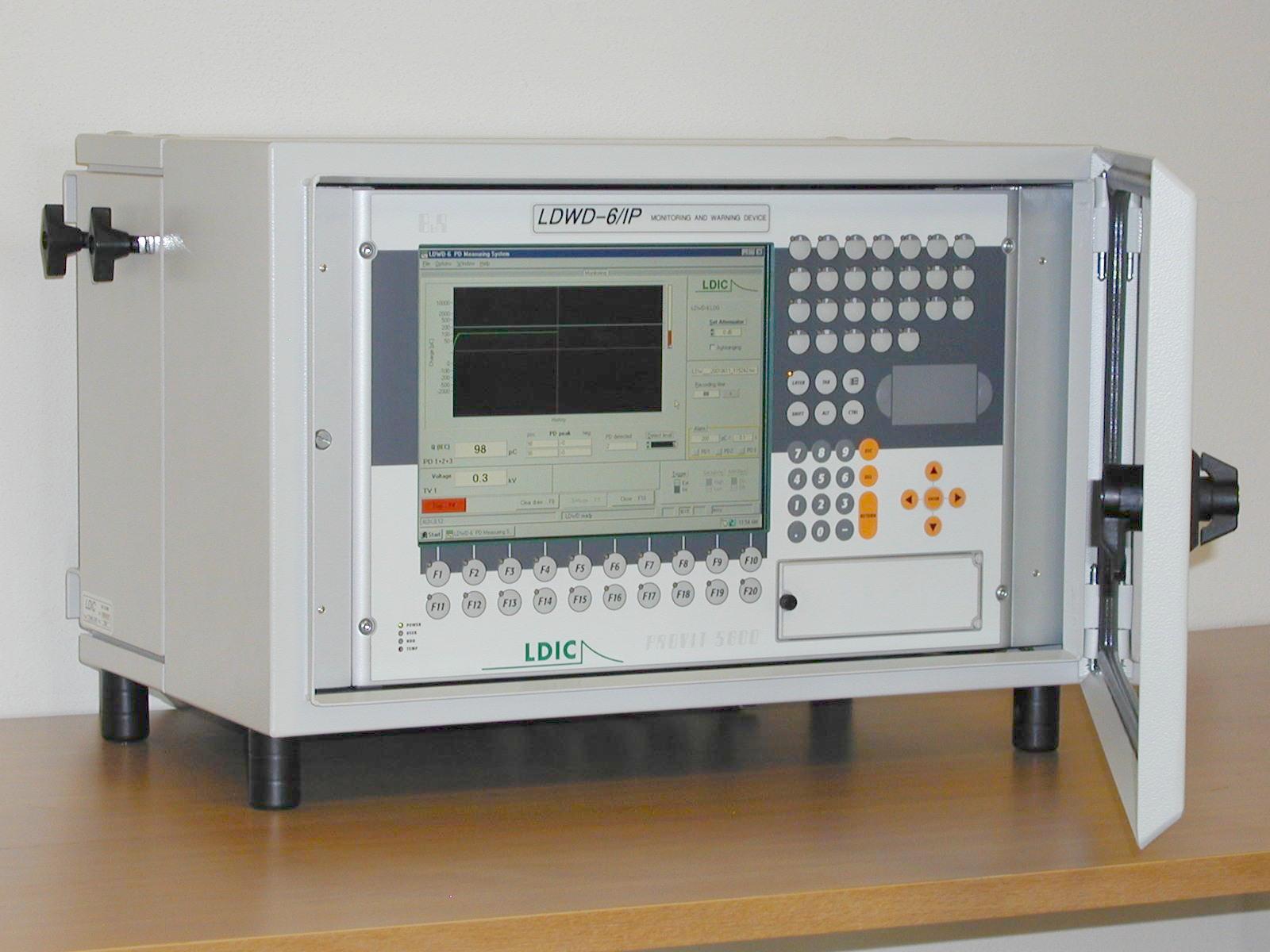

PD monitoring of HV equipment
| |
| Applications: |
- PD monitoring of HV equipment, such as power transformers and rotating machines
- High-sensitive continuous PD monitoring of three-phases power apparatus
|
|
| Downloads: |
Accessories: |
|
LDWD-6
Brochure
|
Measuring Impedance LDM-5
|
 |
LDWD-6
Technical Paper
|
|
 |
LDWD-6 Demo Software
|
|
 |
LDWD-6 Display Samples
|
|
 |
LDWD-6 RFQ |
|
 |
LDWD-6 Slide Show
|
|
 |
Get Adobe Acrobat Reader! |
|
| |
| |
| Specifications: |
- High measuring dynamic real-time monitoring
- Phase resolved PD measurement
- Internal multiplexing unit for phase selection to measure each phase separately or all phases parallel
- Automatically determination of the PD affected phase
- Parallel supervision of several PD parameters such as PC charge, PD frequency, PD current, etc.
- Built-in Gating Unit to suppress external disturbances
- Noise sources detected by magnetic or electric field coupling mode, using inductive or capacitive sensors
- Processing data with the latest technology of software analysis
- Monitored PD characteristics are displayed and transmitted in realtime-mode
- Wide range of analysing features with statistic and diagnostic software tools
- Windows-based software and coloured flat-panel display
- Compact device can be used for outdoor application: designed as water and shock proofed
